Portable laptop full digital ultrasound machine.10.4 inch with battery

FOB Price : Get a Price/Quote

Min.Order : 1 Set(s)

Certification : CFDA,GMP,ISO9001,ISO13485,CE,FDA

Brand Name : XianFeng

Payment Terms : L/C,T/T,D/P,WesternUnion,MoneyGram

contact now Video Conference

favorite

share :

product information

  • brand name : XianFeng

  • certification : CFDA,GMP,ISO9001,ISO13485,CE,FDA

  • min.order : 1 Set(s)

  • warranty :

  • payment terms : L/C,T/T,D/P,WesternUnion,MoneyGram

  • Packaging :

  • Specification :

  • place of origin : Sichuan

product description

Model: S30                                                                            Certification: ISO;CE, CFDA
Dimension:430mm ×250mm ×360mm                                 Packaging Details: carton PP bag, Foam
Brand Name: Xianfeng                                                          Place of Origin:China
Warranty: 18 Month                                                              Color: GRAY white
Size: 300mm ×245mm × 60mm                                           Finish: finished
Customer's Logo: Available                                                   MOQ: 1
Processing Time: 1-3days                                                     Usage: Health care
Quality: Excellent                                                                   Packing: carton PP bag, Foam
XF30 is a laptop ultrasound diagnostic instrument,A microcomputer is used to control and process ultrasonic transmitting and receiving signals.the appearence is thin and light,  the battery can continue support the host work 2 hours.It's easy to carry for feild diagnosis.
Main featrue:
.10.4 inch high resolution screen
.Backlight keys
.Built-in battery(capacity 3000mAh)
.Thin and light notebook design
.16 kinds pseudo color
.Color interface
.Built-in date report
Main Functions:
--Scanning mode: electron scanning
--support Chinese and English display
--Zoom: Local x 2.0 magnification rate
--Dynamic range: 0~120dB adjustable.
--Focus position: Send: 1, 2, 3 and 4-segments dynamic electron focusing; when 1,2-segments focus,
     the focus can be moved.
--Receive: receive real-time dynamic focus by focus
--Measuring function: Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, HC,AC), expected date of confinement and fetus weight, etc.
--Annotation function: hospital name, patient's name, age and gender;
--64 body marks (with probe's position); Full-screen character annotation; Real-time clock display;
--Puncture guide: 3.5MHz convex array probe can display puncture guide line in B mode.
--Gain control: 8 segments TGC and overall gain can be adjusted respectively.
--Image polarity: left and right flip, black and white flip, up and down flip.
--Permanent storage: ≧128 images.
--Image playback: series playback or check one by one.
--Image processing: γ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
--USB interface: store image only for U disk.
XF30 laptop full digital ultrasound machine


Main Technical Indexes
Standard probe: T35R60GZ convex array probe: 80 elements, R60, frequency of 3.5 MHz
Optional probe:convex probe;linear probe;trans vaginal probe
Basic performance as below:
NO. Name of technical indexes  Type T35R60GZ convex array probe Type T65R13GZ cavity probe
1 Nominal frequency of probe  MHz f=3.5 MHz f=6.5 MHz
2 Type   of probe R=60,Convex array R=13,Micro-convex array
3 Scan depth mm ≥170    mm ≥60    mm
4 Lateral resolution mm ≤3mm(depth≤80 mm) ≤2mm(depth≤30 mm)
≤4mm(80 mm＜depth≤130 mm)
5 Axial resolution mm ≤2mm(depth≤80 mm) ≤1mm(depth≤40 mm)
≤3mm(80 mm＜depth≤130 mm)
6 Blind area ≤5    mm ≤4 mm
7 Transverse geometry precision ≤10 % ≤10 %
8 Longitudinal geometric location   accuracy ≤8 % ≤5 %
--Monitor: 10.4 inch LED display.
--Grey scale: 256 levels.
--The perimeter area measurement deviation: 20% or less.
--Running hours: ≥8h.
--The battery pack continuous working time: ≥1h.
--Input power: ≤110VA.
--Host weight: about 3.5 kg.
--Host appearance size: 300 ×245 × 60 (length × width × height) (mm3).
Configuration probe
The configuration probe of the instrument showed as below:
Type Scan model Frequency range element radius of curvature Scan width Scan angle
T35R60GZ Convex 2.5MHz～5.0MHz  80 R60mm _ 60°
T75L40GZ Linear 5.0MHz～7.0MHz  80 _ L40mm _
T65R13GZ Cavity 5.5MHz～7.5MHz  80 R10mm _ 150°
T50R20GZ Micro-C 5.0MHz  80 _ _ 90°
Configuration
Standard configuration: 1 host; 1 T35R60GZ convex array probe.
Optional configuration: T65R13GZ type cavity probe.

People who viewed this also viewed

  • Portable laptop full digital ultrasound machine.10.4 inch with battery

    FOB Price :

    Min.Order : 1 Set(s)

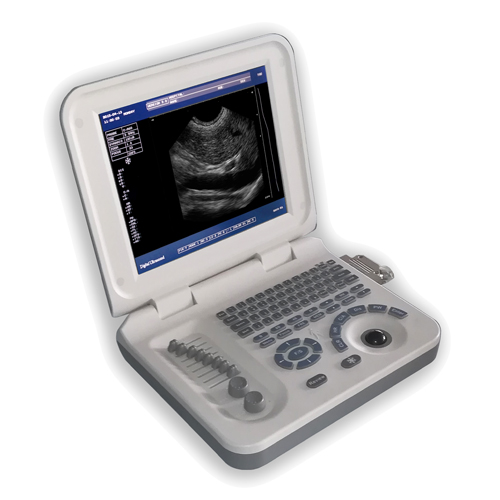

  • Laptop Type B black and white Ultrasound Scanner

    FOB Price :

    Min.Order : 1 Set(s)

  • Laptop Type B black and white Ultrasound Scanner

    FOB Price :

    Min.Order : 1 Set(s)

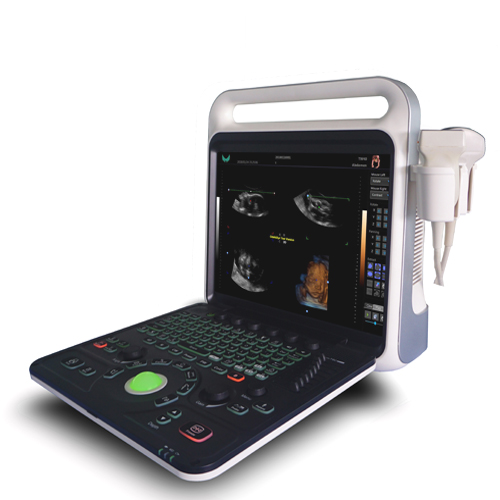

  • Trolley Real-time 4D imaging color ultrasonic diagnosis system
