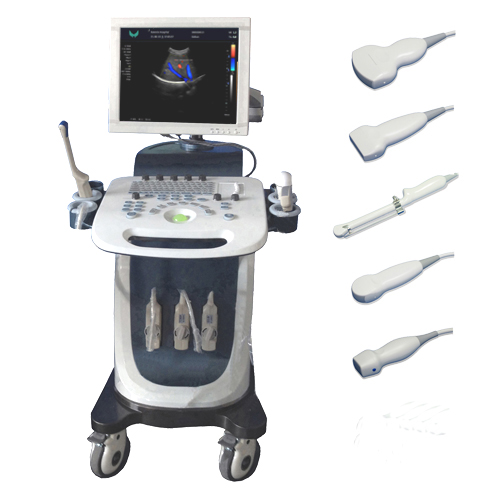

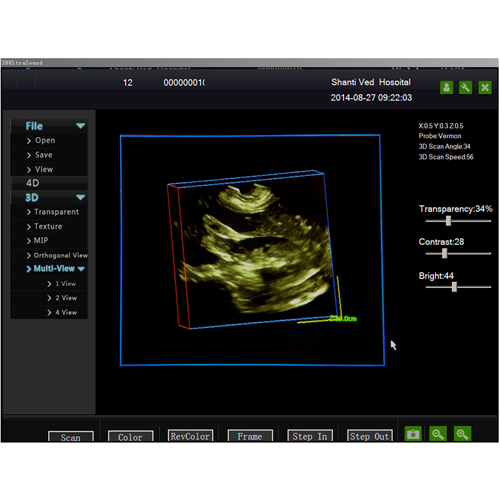

Trolley Real-time 4D imaging color ultrasonic diagnosis system

FOB Price : Get a Price/Quote

Min.Order : 1 Set(s)

Certification : ISO9001,ISO13485,CE

Brand Name : XianFeng

Payment Terms : L/C,T/T,D/P,WesternUnion,MoneyGram

contact now Video Conference

favorite

share :

product information

  • brand name : XianFeng

  • certification : ISO9001,ISO13485,CE

  • min.order : 1 Set(s)

  • warranty :

  • payment terms : L/C,T/T,D/P,WesternUnion,MoneyGram

  • Packaging :

  • Specification :

  • place of origin : Sichuan

product description

Model: XF7700                                                                          Certification: ISO;CE, CFDA
Dimension:1090mm*700mm*1130mm                                    Packaging Details: carton PP bag, Foam
Brand Name: Xianfeng                                                              Place of Origin:China
Warranty: 12 Month                                                                  Color: GRAY white
Size:1090mm*700mm*1130mm                                                Finish: finished
Customer's Logo: Available                                                       MOQ: 1
Processing Time: 1-3days                                                         Usage: Health care
Quality: Excellent                                                                       Packing: carton PP bag, Foam

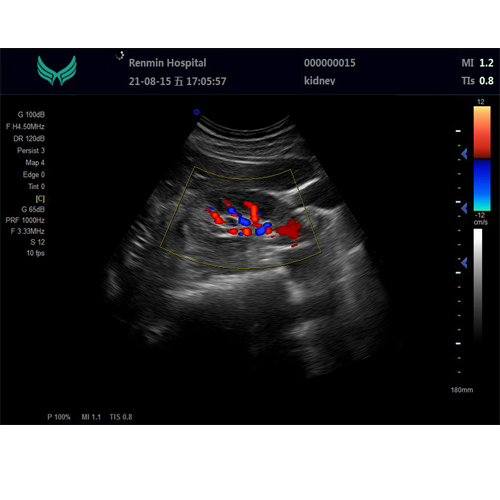

Trolley color Doppler ultrasound scanner.with intelligent PIP imaging mode.windows embedded operation system.real-time 3D imaging unit.
This is trolley type color doppler ultrasound diagnostic system,Image is clear and high resolution,It's imaging used lot of new processing techniques. model after many trials, the final pass by authoritative quality inspection departments qualified and into the market, the stable model appearance and the operation is simple, image is clear, powerful function, support 3D and 4D function.This model can fully meet the demand of developing countries for high cost performance.
Range of application:
This trolley color doppler ultrasound systemic applications include abdominal,obstetric,gynecological, cardiac,vascular, urinary, small organ, breast, pediatric and neonatal imaging, fetal heart imaging, puncture, etc.
XF7700 Color Doppler Ultrasound Diagnostic Equipment

Main Functions:
Having a full digital beam forming technology
Scanning mode: Convex array, lumen, high-frequency linear array, phased array;
Dynamic range: 0~120dB adjustable;
Display mode: B,B/B,M,B/M,CFM,CMF/B,PDI,B/PW, total eight mode;
Application mode: abdomen, gynecology, obstetrics, superficial organ, urologist, musculoskeletal,andrology,heart and user defined model
 1-4, total ten models;
Image mode: digital beam forming, tissue harmonic imaging;
Acoustic output: Mechanical index and thermal index real-time display;
Acoustic power:Step is adjustable, real-time display;
Gray scale: 256 scales;
Depth display: ≥250mm;
B/D dual-purpose: linear array: B/PWD; convex array: B/PWD;
Pseudo color processing: 16 kinds of pseudo color encoding can optional;
Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically;
Image magnification: picture in picture zoom in and zoom part function;
Image processing: Edge enhancement: Multilevel adjustable
Frame average: Multilevel adjustable
Line average: Multilevel adjustable
Focus Optimization: Multilevel adjustable
Gray Restrain: Multilevel adjustable
Gamma correction: Multilevel adjustable
Contrast: Adjustable
Brightness: Adjustable
Self-motion optimize function: Built-in multiple check type, according to different inspection organs, preset best
 image check condition, reduce the adjusting operation keys;
One-click optimization function: preset several parameters adjusting focus on a button, a key to realize image
 fast optimization;
Measurement and calculation: B mode routine measurement:
Distance, circumference, area, volume, angle, ratio, and stenos rate.
M mode routine measurement: Heart rate, time, distance, speed, ratio, etc.
Gynecology measurement: Uterus, cervix, endometrial, ovary, follicular.
Obstetrics measurement:
EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).
Cardiology measurement: LV measurement.
Urology measurement:
Prostate volume, displacement volume, bladder capacity, and residual urine output.
PW measurements: Time, speed, Heart Rate, RI, PI, etc.
Other measurement: Slice volume measurement, hip joint angle measurement.
Image storage: Image storage, video storage, cine loop, disk storage capacity≥160G;
Patient data: Medical record management, report inquiry and printing, image video output( HDD ,USB,Optional
 DVD-RW),built-in ultrasound workstation;
Reporting system: automatic report generation system, and can be full screen characters in both Chinese and
 English editor;
Output interface: SR323,USB,DICOM interface;
Main Technical Indexes
The performance requirements of gray-scale imaging mode
The color ultrasonic at the gray-scale imaging performance mode should comply with the provisions of the table 1.1
Table 1.1 At the Gray-scale imaging mode the performance of the probe
performance   indexes probe type and nominal   frequency
2.0≤f＜4.0 2.0≤f＜5.0 5.0≤f＜8.0 5.0≤f＜10.0
a) probe type and model phased array (type TP16A) Convex array
(type   TC60A)		 Cavity
(type   TC10A)		 Linear array
(type TL40A)
b) nominal frequency (MHz) 3.0 3.5 6.5 7.5
c) Scan depth(mm) ≥140 ≥160 ≥40 ≥50
d) Lateral resolution (mm) ≤3(depth≤80)
≤4(80＜depth≤130)		 ≤3(depth≤80)
≤4(80＜depth≤130)		 ≤2(depth≤30) ≤2(depth≤40)
e) Axial resolution (mm) ≤2(depth≤80) ≤2(depth≤80)
≤3(80＜depth≤130)		 ≤1(depth≤40) ≤1(depth≤50)
f) Blind area (mm) ≤7 ≤5 ≤4 ≤3
g) Transverse geometry   precision (%) ≤20 ≤15 ≤10 ≤10
h) Longitudinal geometric location   accuracy (%) ≤10 ≤10 ≤5 ≤5
i) Slice thickness (mm) ≤5 ≤5 ≤5 ≤5
j) Perimeter and area    measured deviation (%) ≤±20 ≤±20 ≤±20 ≤±20
k)  M mode time   display error (%) ≤±10 ≤±10 ≤±10 ≤±10
XF7700 Color Doppler ultrasound Diagnostic Equipment

configuration probe
The configuration probe of the instrument showed as below:
Type Scan model Frequency range   radius of curvature Scan width Scan angle
TC60A Convex 2.0MHz～5.0MHz   R60mm _ 60°
TL40A Linear 5.0MHz～10.0MHz   _ L40mm _
TC10A Cavity 5.0MHz～8.0MHz   R10mm _ 150°
TP16A Phased 2.0MHz～4.0MHz   _ _ 90°
XF7700 Color Doppler ultrasound Diagnostic Equipment

Input power: ≤320V;
Host weight: about 45 kg;
Host appearance size: 950 ×520× 1260(length × width × height) (mm3).
Package size:1090×700×1130(length × width × height) (mm3).
