Model: S30A Certification: ISO;CE, CFDA
Dimension: 500mmx470mmx260mm Packaging Details: carton PP bag, Foam
Brand Name: Xianfeng Place of Origin:China
Warranty: 12 Month Color: GRAY white
Size:450mmx350mmx450mm Finish: finished
Customer's Logo: Available MOQ: 1
Processing Time: 1-3days Usage: Health care
Quality: Excellent Packing: carton PP bag, Foam

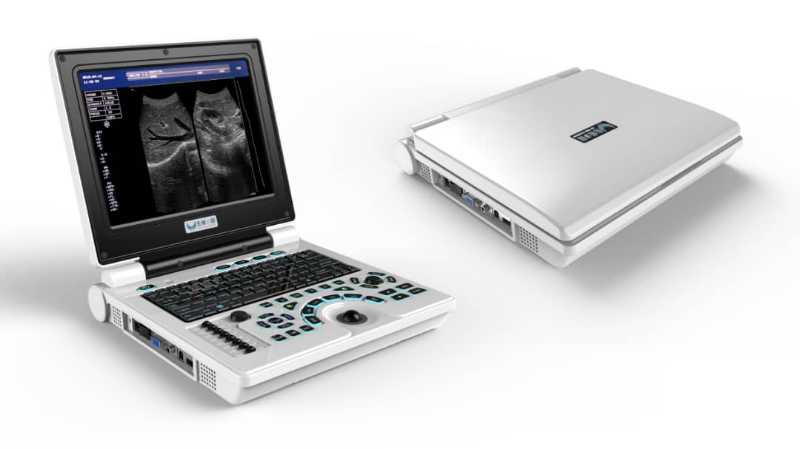

This Laptop full digital ultrasound diagnostic instrument Use a 12.1-inch LED display, dual probe connectors, backlight buttons, and new gynecological software average optimization.It is an affordable and durable .powerful . The latest black and white ultrasound system design provides you with high quality images and convenient workflow.
Main Feature:
Scanning mode: electron scanning
Probe configuration: convex array probe; cavity probe;linear probe.
Display modes:B.B/B.B/M.4B.4B.
Image multiplying factor:×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0;(display penetration depth);
M type speed: M type scanning has eight kinds of speed can be selected.
Support Chinese and English translation: Transformation in both English and Chinese in interface.
Zoom: Local x 2.0 magnification rate
Dynamic range: 0~120dB adjustable.
Frequency: real-time scan:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz
Focus position: Send: 1, 2, 3 and 4-segments dynamic electron focusing; when 1,2-segments focus,
the focus can be moved.
Receive: receive real-time dynamic focus by focus
Measuring function: Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, HC,OFD, TTD,AC), expected date of confinement and fetus weight, etc.
Annotation function: hospital name, patient's name, age and gender;
64 body marks (with probe's position); Full-screen character annotation; Real-time clock display;
Puncture guide: 3.5MHz convex array probe can display puncture guide line in B mode.
Gain control: 8 segments TGC and overall gain can be adjusted respectively.
Image polarity: left and right flip, black and white flip, up and down flip.
Permanent storage: ≧128 images(Pseudo color display: External monitor 16 kinds of color display)
Image playback: series playback or check one by one.
Image processing: γ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
Output interface: SVGA video output offers connection to SVGA color display;
