Speciaficaton
| Dimensions |
| Dimensions |
210mm(L)*125mm(W)*175mm(H) |
| Weight |
2.2 kg (4.85 lbs) |
| Samples |
| Sample Size |
0.1cc (100 µl) |
| Sample Type |
Lithium heparin, whole blood, serum or plasma |
| Test Time |
8-12 minutes |
| System |
| Quality Control Features |
Built-in real-time Quality Control (rQC®) system |
| Communication |
Bi-directional input/output; |
| Interfaces |
WIFI, USB, Bluetooth, LIS/EMR capable |
| Consumables |
Parameter |
33 tests in 12 panels |
| Consumables |
7.8cm in diameter and 0.68cm thick, single-use, self-contained plastic chemistry reagent discs. Each disc contains all reagents needed to perform a panel of tests on a single sample |
| Environmental Specifications |
| Ambient temperature: |
10~30℃(50–86 ºF), indoor use |
| Power requirements: |
82 VA (Power bank Capable) |
| Main supply voltage: |
100-240 volts AC, 50-60 Hz |
| Operating humidity: |
40%~85% |
| Reaction Temperature: |
37℃±0.2℃ |
| Measurement Principles: |
Spectrophotometry, Turbidimetry |
| Data Input Display |
4.3 inch capacitive touchscreen |
| Other Specifications |
| Mode of Opertion |
Continuous |
| Memory Capacity |
Up to 50,000 patient and quality control results |
Features

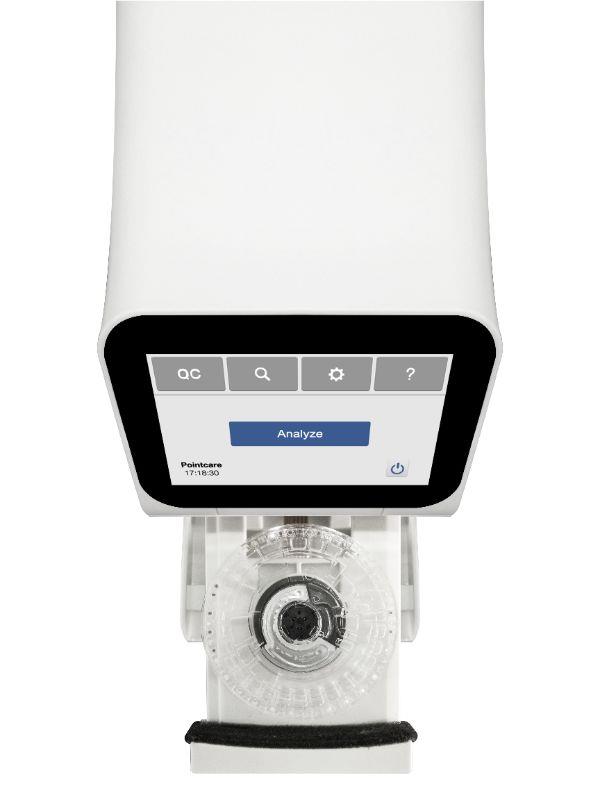

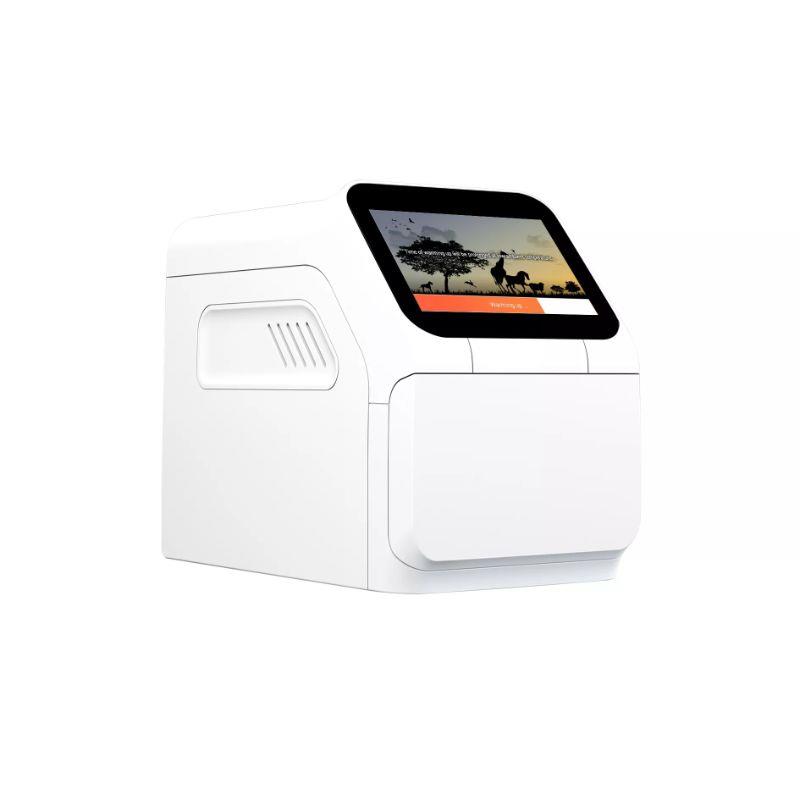

Pointcare V3 on- site vet chemisty analyzer is a chemical, electrolyte and immunoassay all-in-one analysis.PV3 is small and durable, can be operated anytime, anywhere, it can even be driven by power bank. The user interface is friendly and easy to learn. It's very simple and intuitive. Provides accurate laboratory quality results in 10 to 12 minutes, making it ideal for vet clincs as well as bringing equipment to clients for testing.
Small in size
Compact design and lightweight (2.2kg) suitable for mobile use outside formal health care settings by home health caregivers.
Real-time care
Caregivers can perform a complete panel of up to 16 tests on-site in about 8～12 minutes. Seconds of hands-on time, minutes get reliable lab-accurate results for treatment solution.
Easy and safe operation
Three simple steps for fast, efficient performance. Pointcare V is designed to simplify your workflow with ease of use, flexibility and throughput
Little to no maintenance
The use of xenon lamps as the light source has a theoretical working time of decades.Save cost,save time.
Multi-test panel
The tests menu of 33 parameters including chemistry, electrolyte and immunoassay is the broadest of any point-of-care analyzer.
Information system compatibility
The MNCHIP management platform is designed for vet clinic, hospital and laboratory information systems. Simplify and standardize work processes and reduce the workload of employees.
Application scenario
Pointcare® V could be widely used in vet clinic, hospital, lab,etc
Reagent Panel Information
|
Panels
|
Chemisty
|
|
Health Checking Profile(16)
|
TP、ALB、GLO*、ALB/GLO*、ALT、ALP、TBIL、CRE、BUN、BUN/CRE*、GLU、CHOL、CK、
AMY、Ca2+、P
|
|
Preanesthetic Profile(7)
|
TP、ALT、ALP、CRE、BUN、BUN/CRE*、GLU
|
|
Preanesthetic Profile Plus(10)
|
TP、ALT、AST、ALP、CRE、BUN、BUN/CRE*、GLU、CK、LDH
|
|
Liver & Kidney Profile(12)
|
TP、ALB、GLO*、ALB/GLO*、ALT、AST、GGT、TBIL、CRE、BUN、BUN/CRE* 、GLU
|
|
Liver Profile(11)
|
TP、ALB、GLO*、ALB/GLO*、ALT、AST、GGT、ALP、TBIL、DBIL、IBIL*
|
|
Kidney Profile(10)
|
TP、UA、CRE、ALB、BUN、BUN/CRE*、K+、Ca2+、P、TCO2
|
|
Critical Care Profile(10)
|
ALT、CRE、BUN、BUN/CRE*、GLU、K+、Na+、Na+/K+*、Cl-、TCO2
|
|
Diabetes Profile （6）
|
TG、CHOL、HDL-C、LDL-C*、GLU、GSP
|
|
Avian&Reptile Panel(14)
|
TP、ALB、GLO*、A/G*、AST、UA、GLU、CK、K+、Na+、Na+/K+*、Cl-、Ca2+、P
|
|
Large Animal Diagnostics(11)
|
ALB、ALP、AST、BUN、Ca2+、CK、GGT、GLO*、Mg2+、P、TP
|
|
Electrolytes Profile(8)
|
K+、Na+、Na+/K+*、Cl-、Ca2+、Mg2+、P、tCO2
|
|
Triple Test
|
TP、ALB、TBIL、ALT、ALP、CK、CHOL、GLU、AMY、CRW、BUN、PHOS、Ca2+
|
|
Coming soon
|
HCY、 CHE、 TBA and more
|
