Speciaficaton
| Dimensions |
| Dimensions |
210mm(L)*125mm(W)*175mm(H) |
| Weight |
2.2 kg (4.85 lbs) |
| Samples |
| Sample Size |
0.1cc (100 µl) |
| Sample Type |
Lithium heparin, whole blood, serum or plasma |
| Test Time |
8-12 minutes |
| System |
| Quality Control Features |
Built-in real-time Quality Control (rQC®) system |
| Communication |
Bi-directional input/output; |
| Interfaces |
WIFI, USB, Bluetooth, LIS/EMR capable |
| Consumables |
| Parameter |
34 tests in 9 panels |
| Consumables |
7.8cm in diameter and 0.68cm thick, single-use, self-contained plastic chemistry reagent discs. Each disc contains all reagents needed to perform a panel of tests on a single sample |
| Environmental Specifications |
| Ambient temperature: |
10~30℃(50–86 ºF), indoor use |
| Power requirements: |
82 VA (Power bank Capable) |
| Main supply voltage: |
100-240 volts AC, 50-60 Hz |
| Operating humidity: |
40%~85% |
| Reaction Temperature: |
37℃±0.2℃ |
| Measurement Principles: |
Spectrophotometry, Turbidimetry |
| Data Input Display |
4.3 inch capacitive touchscreen |
| Other Specifications |
| Mode of Opertion |
Continuous |
| Memory Capacity |
Up to 50,000 patient and quality control results |
Features

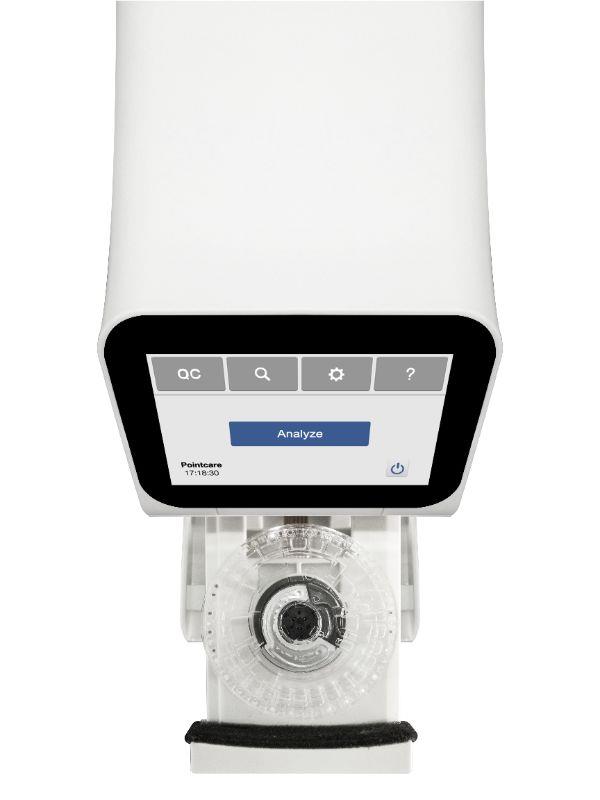

Pointcare M3 on- site analyzer is a chemical, electrolyte and immunoassay all-in-one analysis.PM3 is small and durable, can be operated anytime, anywhere, it can even be driven by power bank. The user interface is friendly and easy to learn. It's very simple and intuitive. Provides accurate laboratory quality results in 10 to 12 minutes, making it ideal for clincs as well as bringing equipment to clients for testing.
Small in size
Compact design and lightweight (2.2kg) suitable for mobile use outside formal health care settings by home health caregivers.
Real-time care
Caregivers can perform a complete panel of up to 17 tests on-site in about 8～12 minutes. Seconds of hands-on time, minutes get reliable lab-accurate results for treatment solution.
Easy and safe operation
Three simple steps for fast, efficient performance. Pointcare M is designed to simplify your workflow with ease of use, flexibility and throughput
Little to no maintenance
The use of xenon lamps as the light source has a theoretical working time of decades.Save cost,save time.
Multi-test panel
The tests menu of 34 parameters including chemistry, electrolyte and immunoassay is the broadest of any point-of-care analyzer.
Information system compatibility
The MNCHIP management platform is designed for clinic, hospital and laboratory information systems,including HIS, LIS, HR, LMS and EMR. Simplify and standardize work processes and reduce the workload of employees.
Application scenario
Pointcare® M could be widely used in COVID-19 Isolation wards, Primary Care, Emergency, ICU, Mobile practitioners, Pediatrics, Oncology, Hospitals, Government & Military, Research & Other
Regant Panel Information
| Panels |
Test
|
| Liver Function Panel Lyophilized Kit(11) |
TP、ALB、GLO*、ALB/GLO*、TBIL、DBIL、IBIL*、ALT、AST、 GGT、ALP |
| Renal Function Panel Lyophilized Kit(7) |
CRE、UREA、UA、CO2、Ca2+、P、ALB |
| Electrolyte Panel Lyophilized Kit(7) |
K+、Na+、Cl-、CO2、Ca2+、Mg2+、P |
| Myocardial Enzyme Panel Lyophilized Kit(5) |
CK、CK-MB、LDH、α-HBDH、AST |
| Glucose and Lipid Panel Lyophilized Kit(6) |
TG、CHOL、HDL-C、LDL-C*、GLU、GSP |
| Clinical Emergency Lyophilized Kit(13) |
CK、CK-MB、Cl-、K+、UA、Na+、CO2、GLU、AMY、CRE、α-HBDH、LDH、AST |
| Liver and Renal Function Lyophilized Kit(11) |
TP、ALB、GLO*、ALB/GLO*、TBIL、 ALT、AST、GGT、UREA、CRE、GLU |
| General Chemistry Ⅰ Lyophilized Kit(17) |
TP、ALB、GLO*、ALB/GLO*、TBIL、DBIL、IBIL*、 ALT、AST、UREA、CRE、UA
GLU、TG、CHOL、HDL-C、LDL-C* |
| General Chemistry Ⅱ Lyophilized Kit(8) |
K+、Na+、Cl-、CO2、GLU、CRE、UREA、AMY |
| Electrolyte Panel Lyophilized Kit(7) |
K+、Na+、Cl-、tCO2、Ca2+、Mg2+、P |
| coming soon |
PH, CRP,SAA,CYS-C and more |
