FlexA-200 full-wavelength Microplate reader is a high-quality Microplate reader based on grating monochromator with a wavelength range of 200-1000 nm. It can be used for spectroscopic scanning, endpoint method and kinetic detection. It is suitable for 96 well plates and 384 well plates with or without cover. FlexA-200 can be shocked and cultured by microporous plate, and the highest temperature of culture is up to 45 C. FlexA-200 Microplate reader can be operated independently by the built-in software of the instrument, and can be controlled by PC using ReaderIt-II software.
Choose detection wavelength freely with raster
FlexA-200 adopt the xenon flash lamp as light source,which choose the wavelength range from 200-1000nm with 1nm step by grating monochromator for the full spectrum scanning only needs 15 seconds each sample.

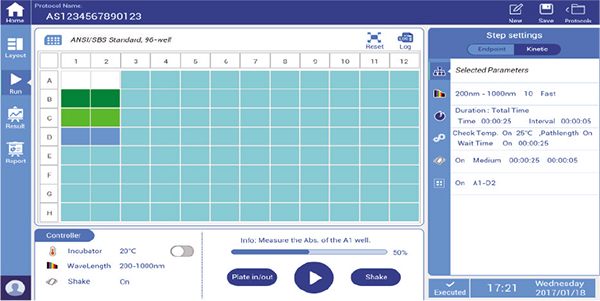

Friendly operation interface which can complete fast detection in FlexA-200
The built-in software of Flex-200 which has 10 inch high resolution touch scree and adopts the graphic interface, it make the operations easy. In addition ,you can use USB to export date.

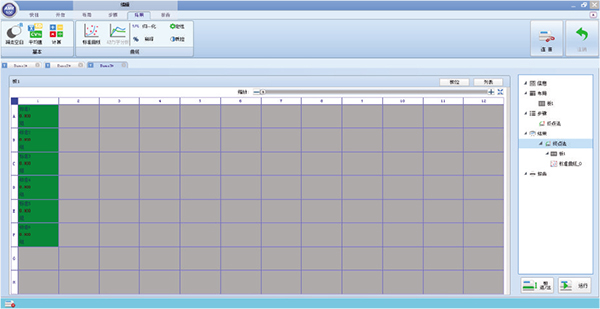

ReaderIt-II software has the strong data analysis and advanced detection setting ability
Graphic interface ReaderIt-II realized the simulation demonstration function. The data analysis function includes quantitative curve fitting, quantitative analysis, kinetics calculation, custom equation and 4 parameter fitting and so on. Data can be exported to Excel format easily, and the detailed report also can be exported by the built-in tools.
FlexA-200 instrument built-in software and ReaderIt-II software are both Chinese/English interface intuitive graphical interface is convenient for customers to use.
High quality date and stabilized performance
The optical system makes sure the high quality data and
stabilized performance of FlexA-200:
1. Double beam optical system has the reference optical channel system, which make the data more stabilization.
2. Self checking system make sure the device running stabilized.
3. Long life xenon lamp which can be used for 10 times.
Temperature range: ambient +5℃ to 45℃.
Average temperature difference: ±0.5℃ (at 37℃).
Uniformity: ＜1.0℃(96 well plate without cover, at℃).
Liner shaking function for microplate
Three options for the shaking speed: Low speed, Intermedi-ate speed and High speed.
Low speed: 5Hz, amplitude 15mm.
Intermediate speed: 11Hz, amplitude 3mm .
High speed: 20Hz, amplitude 1mm.
Wide and convenient application
FlexA-200 can be used for spectrum scanning, end point and kinetic detection in 96/384-well plates.
1. DNA/RNA quantitative and purity analysis.
2. Protein quantitative.
3. Enzymology and immune detection.
4. Kinetic detection.
5. Cell multiplication and cytotoxicity detection.
Easy to use:
1. Raster full wavelength which can be used for spectrum scanning to find the best detection wavelength.
2. Small bandwidth (< 2 nm) and higher wavelength accuracy
3. Touch screen and built-in graphic interface software with android system make the operation easy.
4. Friendly used of ReaderIt-PC software.
5. With the function of incubation oscillation, Heating lid incubation reduces liquid evaporation .
6. Software upgrade for free.
Energy saving mode
1. Stepper motor and incubator shut down.
2. Display turns darken.
3. Click any button to quit the energy saving mode.
