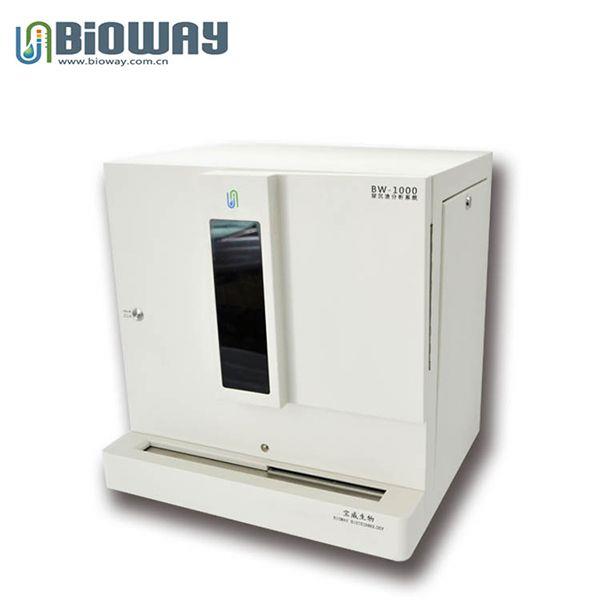

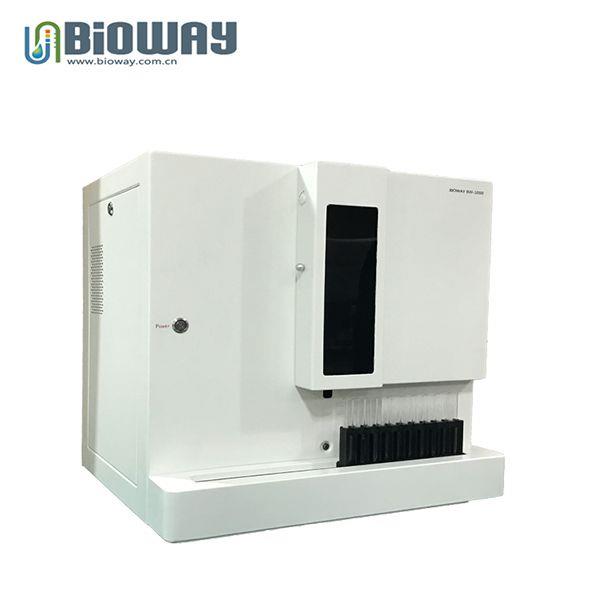

BW-1000 Full Automatic Sediment Urine Analyzer

FOB Price : Get a Price/Quote

Min.Order : 1 Set(s)

Certification : CFDA,GMP,ISO13485,CE,FDA,Others

Brand Name : BIOWAY

Payment Terms : L/C,T/T

favorite

share :

product information

  • brand name : BIOWAY

  • certification : CFDA,GMP,ISO13485,CE,FDA,Others

  • min.order : 1 Set(s)

  • warranty :

  • payment terms : L/C,T/T

  • Packaging :

  • Specification :

  • place of origin : China

product description

Model: BW-1000                                                                     Certification: 1. ISO13485  2.CE  3.FSC

Dimension: 520mmX440mmX550mm                                    Packaging Details: /

Brand Name: BIOWAY                                                             Place of Origin: CHINA

Warranty: 10years                                                                    Color: White

Size: 520mmX440mmX550mm                                                Finish: /

Customer's Logo: /                                                                   MOQ: 1 set

Processing Time: 25 working days/set

Usage:

Quality: Auto injection; Auto focus; Auto snap recognition; All the characters on AIT
Packaging: Plywood Case

【Test Principle】Using machine vision technology: automatic identify, classify and count the formed elements in urine with microscope automatic morphological methods.
【Test Items】Normal RBC, Standing RBC, Dysmorphic RBC, Normal WBC ,wbcc, Pus  cell ,Hyaline Cast ,Granular Cast, WBC Cast ,Squamous Epithelial cell ,Normal Epithelial Cell ,Sperm ,Calcium Crystal ,Oxalate Crystal Bacteria ,Yeast ,Amorphous Urates ,Mucus  etc.
【Test Speed】30 samples/hour
【Sample Volume】 Minimum urine volume 2ml, minimum injection volume 0.5ml
【Sample Process】The sample can be directly tested without centrifugation.
【Flow Cell】High accuracy, single channel flow cell(test channel)
【Sampling Method】Automatic trail suction, 10 samples on the machine at the same time.
【Accuracy】≥ 95%
【Repeatability Test】CV < 10%
【Contamination Rate】< 0.05%
【Report Form】xx unit/ul,HPF&LPF etc. international universal quantitative unit, comprehensive graphic report of dry chemical analysis and urine formed elements quantitative analysis
【Measurement】520mm x 440mm x 550mm(L x W x H)
【Net Weight】 35kg
【Power Supply】AC 220V土 10%, 50Hz
【Data Interface】Two-way communication interface, can be connected with
dry chemistry analyzer, printer and hospital management system
【Power Supply】AC 220V土 10%, 50Hz
【Standard Configuration】Computer,including screen, mouse, key board
【Specification】

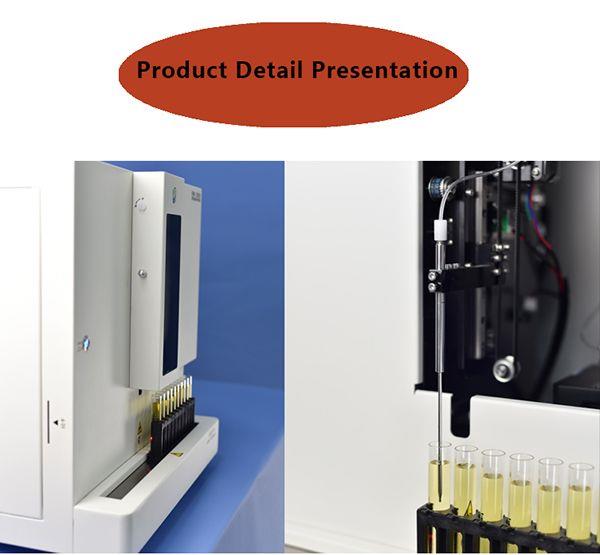

1.Automatic trail suction, 10 samples on machine at the same time, easily operate.

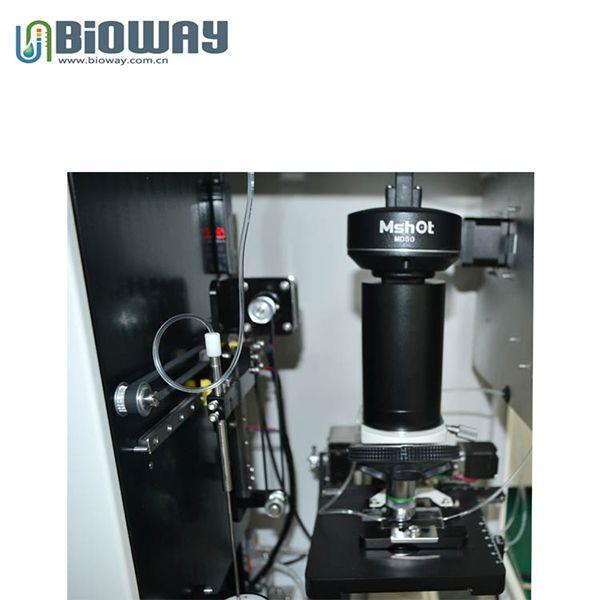

2.Auto focus. Adjust focal length of microscope automatically to make sure a clear and complete sample picture.
3.Sample can be used directly without centrifugation and pre-handled,  all of the sample injection, mixing, sampling and sedimentation are automatic.
4.Identify the test sediments and count quantities of the pictures automatically
5.High accuracy flow cell to insure a stable & precise sample-suction and normalize the test result.
6.High accuracy suction-sample needle, choicely pipelines and valves to insure the high stability of the pipeline; high-efficiency auto clearance function to insure clear the inside & outside of the needle efficiently, which will avoid across contamination.
7.The machine owns self-learning function.
8.The more time it is be used, the higher identify rate it becomes.
9.The machine can be connected with dry chemistry analyzer and provide a comprehensive report contains urine dry chemistry and urine sediment test.
