Introduction
Atlas Log Series are single use/multi use temperature data loggers for ultra-low or ultra-high temperature monitoring. They come with a pluggable external probe with optional temperature ranges of -60℃~+200℃/-90℃~+200℃/-196℃~+200℃, to better meet user needs. Besides, they are configurable, battery replaceable, and have an LCD screen for intuitive display. After completing the trip, an encrypted report can be automatically generated.
These ultra-low temperature data loggers are designed for cold chain logistics, storage and transportation, especially for dry ice, liquid nitrogen and other ultra-low/ultra-high temperature applications.
Features
Parameters configurable
Parameters can be freely configured through the configuration software.
Replaceable battery
The battery can be replaced.
Alarm points and markers
Up to 6 alarm points can be set, and up to 9 markings can be made.
Password protection
Password can be set to prevent others from operating the equipment without authorization.
High precision

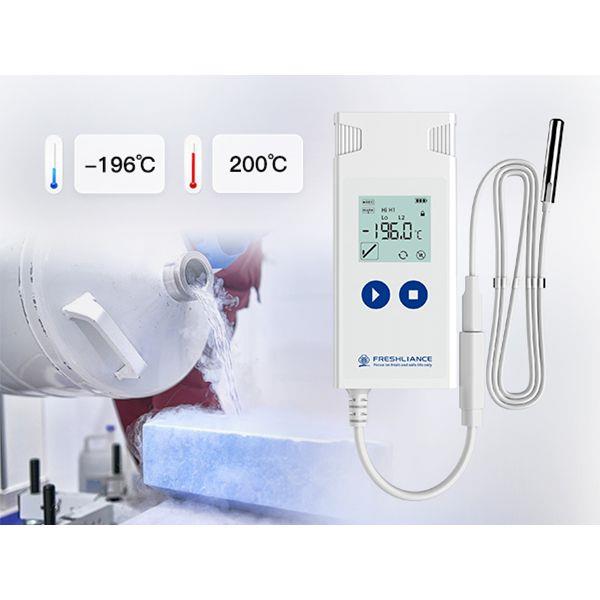

The external probe can measure temperature as low as -196℃ with high accuracy.
Intuitive LCD display
LCD displays: normal, alarm, max/min/average temperature value, running status, and battery level, etc.
Temporary Report Available
Temporary mode allows the device to continue working after the user exports and reads a temporary report. Current data information can be read via configuration software.
Automatic PDF/CSV Reports
It can automatically generate PDF/CSV/PDF+CSV reports with graphs and tables without additional software.
LCD alarm indication and optional buzzer alarm available
Once the temperature out of the presetting alarm range, the alarm symbol(x) will be displayed on the LCD screen. Buzzer alarm is customizable.
Temperature units switchable
Celsius (℃) and Fahrenheit (℉) can be freely switched.
Large memory capacity
Max. 35000 readings for only PDF reports; Max. 20000 readings for PDF&CSV reports.
Multiple probe length and insulation options for the external probes
The external pluggable cable is normally 2m long and other cable lengths are customizable; cable insulation materials are also customizable, including PVC, Teflon, Silicone and flexible ultra thin cable, etc.
Flexible ultra thin cable is suitable for refrigerator door and other application environment with high sealing requirements. Besides, users can also choose sharp or blunt sensor head as required.
