Introduction

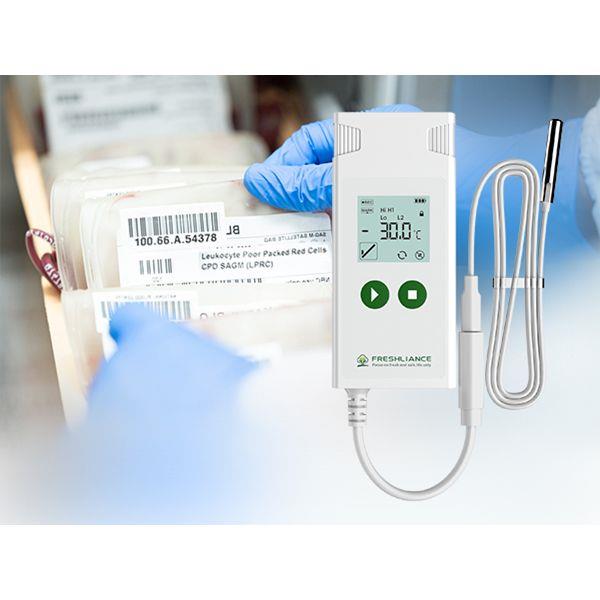

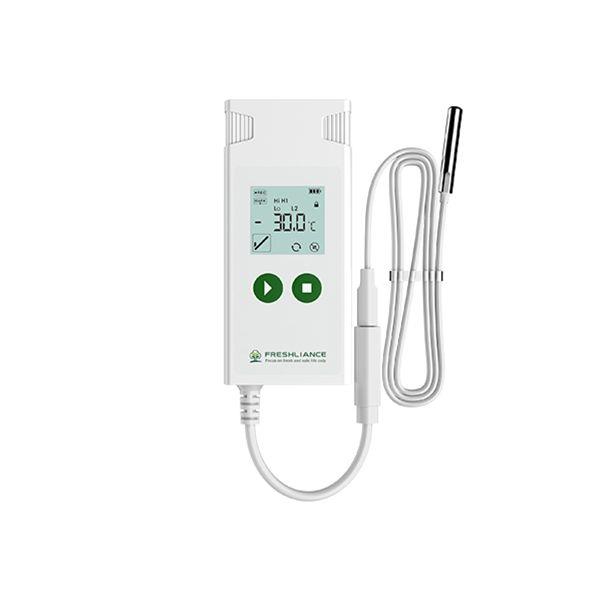

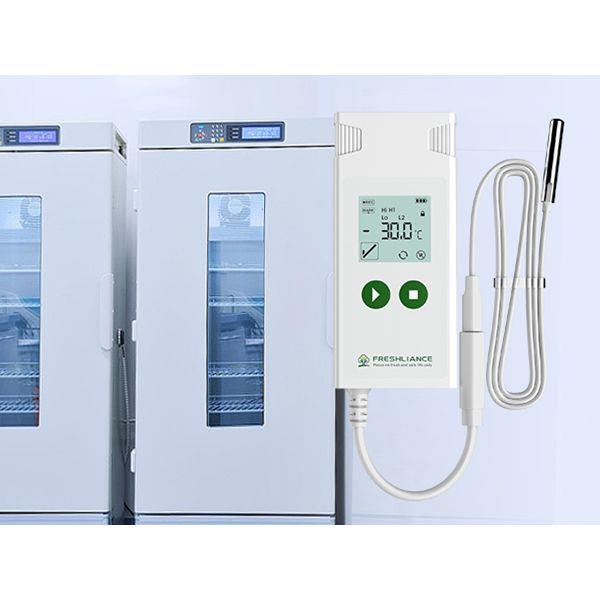

Atlas Log-30 is a Single use/Multi-use temperature data logger is an USB thermograph with an external probe for the temperature range of -30 to 70°C. It comes with up to 35,000 readings with a real-time temperature display on the screen. Parameters can be freely configured on the configuration software provided by our company. The built-in PDF/CSV file generation function enables this logger to directly generate irreversible PDF/CSV data reports on a computer, with no software required. This temperature data logger can be used for temperature monitoring in wide applications such as shipping containers, sea or air freight, distribution, storage and freezing of pharmaceuticals, frozen foods, etc.
Features
Online software configuration
Parameters can be freely configured on the configuration software.
Alarm points and Mark function
Up to 6 alarm points can be set. And in case of any key events, a mark can be made. Up to 9 marks can be made.
Intuitive LCD display
LCD screen displays running status, current temperature, alarm status, battery level, alarm points, Max, Min, and Average temperature value, etc.
Temporary report available
The temporary mode allows this temperature data logger to continue working after users export and read the temporary report.
Automatic PDF/CSV data report
With the integrated USB design, the temperature data logger can be directly connected to one computer to automatically generate PDF/CSV/PDF&CSV reports with graph and table, no cable or reader required.
LCD alarm indication and optional buzzer alarm available
Once the temperature is out of the preset alarm range, the alarm symbol(x) will be displayed on the LCD screen, and the buzzer, if set, will emit an alarm sound of 60 decibels at 3m.
Temperature units switchable
Celsius (℃) and Fahrenheit (℉) can be freely switched.
Multiple probe types optional
The external pluggable cable is normally 2m long and other cable lengths are customizable; cable insulation materials are also customizable, including PVC, Teflon, Silicone and flexible ultra thin cable, etc.
Flexible ultra thin cable is suitable for refrigerator door and other application environment with high sealing requirements. Besides, users can also choose sharp or blunt sensor head as required.
Propylene glycol encased temperature probe for vaccine monitoring
It is designed to buffer readings against temporary air temperature shifts caused by opening doors or loading coolers and accurately simulate the thermal changes experienced by products stored in the monitored environment.
It is ideal for vaccines, pharmacies and walk-in coolers, etc.
