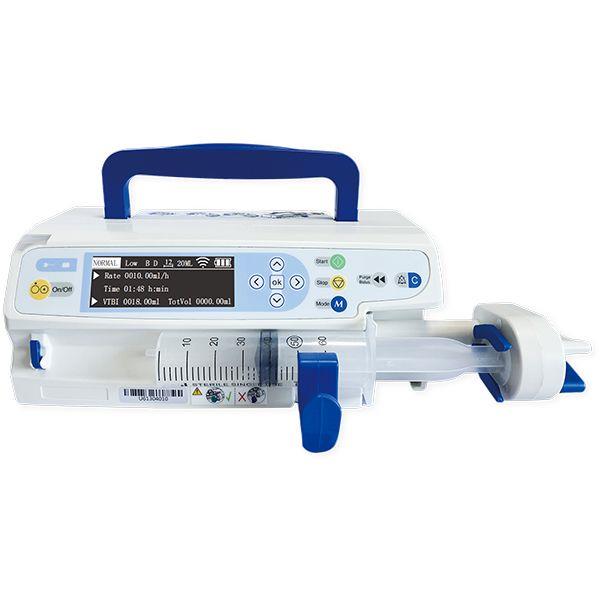

Syringe Pump

FOB Price : Get a Price/Quote

Min.Order : 1 Piece(s)

Certification : CFDA,CE,CFS

Brand Name : DY-MED

Payment Terms : T/T,WesternUnion

contact now Video Conference

favorite

share :

Add to Compare

product information

brand name : DY-MED
certification : CFDA,CE,CFS
min.order : 1 Piece(s)
warranty : /
payment terms : T/T,WesternUnion
Packaging : /
Specification : /
place of origin : Hunan

product description

Model		DY-21	DY-22
Channel		Single	Double
Stackable		YES	NO
Syringe Size		5,10,20,30,50/60ml
Infusion Modes		Rate Mode, Rate-Time, Rate-VTBI ,Time-VTBI, Body Weight
Safety		Double CPU to make sure higher standard infusion
Drug Library		20 drug list with drug code display
Accuracy		±2%
Time Preset		00:01~99:59 (Hour:Min)
Volume Range		0~9999.9ml
Flow Rate Step by		0.1 ml/h when Rate <100ml/h, 1ml/h when Rate ≥100ml/h
Flow Rate Range		5ml Syringe 0.1ml/h-150ml/h
		10ml Syringe 0.1ml/h-300ml/h
		20ml Syringe 0.1ml/h-600ml/h
		30ml Syringe 0.1ml/h-900ml/h
		50/60ml Syringe 0..1ml/h-1200ml/h
Purge/Bolus Rate/Top Flow Rate		5ml Syringe 150ml/h
		10ml Syringe 300ml/h
		20ml Syringe 600ml/h
		30ml Syringe 900ml/h
		50/60ml Syringe 1200ml/h
Audible & Visible Alarms		Auto Seft-Test, Syringe Dislocation, Occlusion, Near End,Syringe Empty, VTBI Completion, Low Battery, Battery Exausted, Motor Malfunction, Incorrect Syringe Specification, Circuit Malfunction, Master CPU Malfunction, Monitoring CPU Malfunction, Parameters Over Limitation,A.C Disconnection, A.C connection
KVO		0.1-5.0ml/h Adjustable
Occlusion Pressure	High:	40 KPa±20KPa
	Middle:	60 KPa±20KPa
	Low:	100KPa±20KPa
Max Infusion Pressure		120KPa
Battery		≥8 hours	≥4 hours
Power Consumption		30VA	45VA
Power Supply		AC:100-240V,50Hz/60Hz
Battery		Lithium battery,11.1/2000mAh
Classification		Class I,type CF,IPX4
Dimension		26×21.5×11cm	32×21.5×20cm
Weight		2kg	3kg
Optional Function		Ambulance DC: 12V
