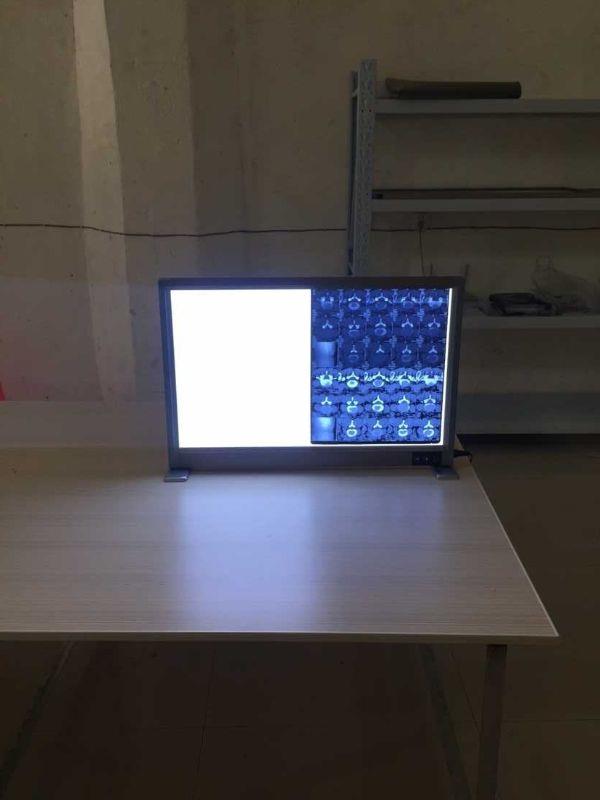

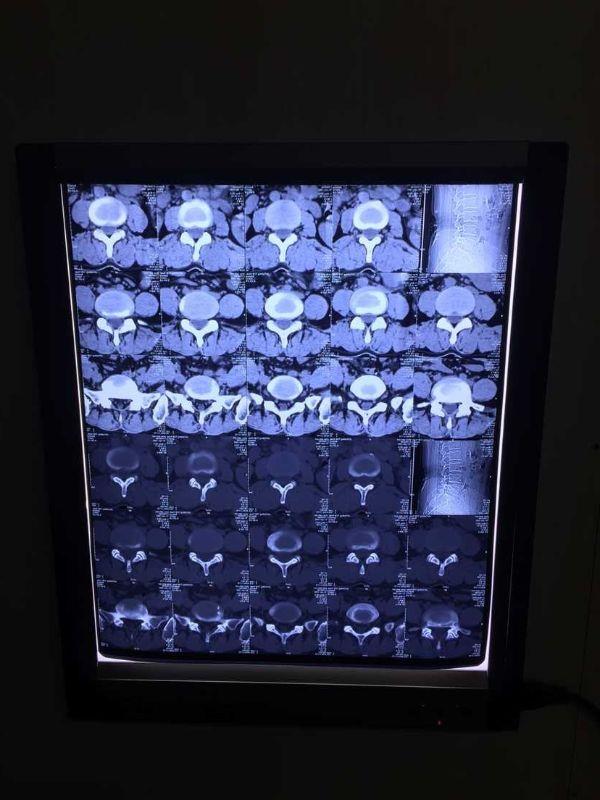

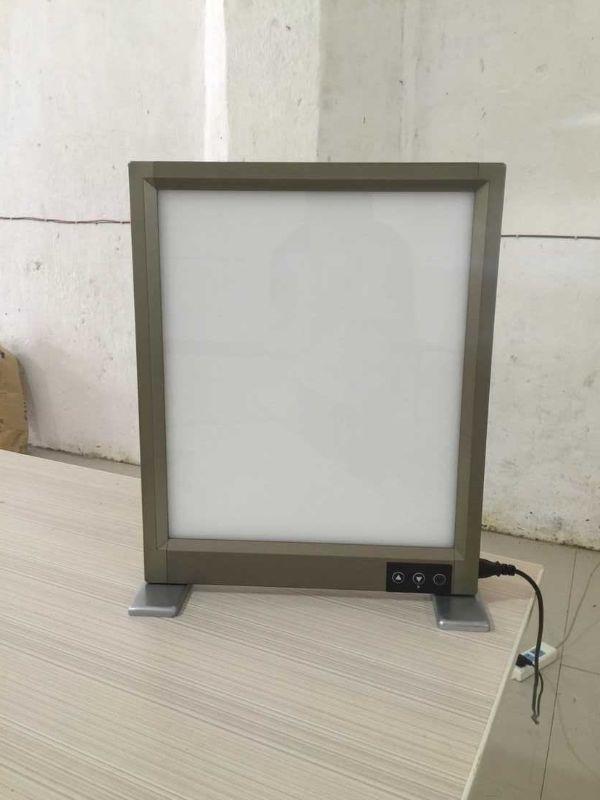

LED film viewer

FOB Price : Get a Price/Quote

Min.Order : 5 Piece(s)

Certification : ISO9001

Brand Name : suxing

Payment Terms : T/T

share :

product information

  • brand name : suxing

  • certification : ISO9001

  • min.order : 5 Piece(s)

  • warranty : 1 year

  • payment terms : T/T

  • Packaging : carton

  • Specification :

  • place of origin : unknown

product description

Main technical index:
Brightness: the maximum brightness >= 2000cd/m2
Adjustable brightness: the maximum brightness >= 2000cd/m2
Minimum brightness <= 300cd/m2
Each part of the viewing screen with uniform distribution of light intensity, no dark area, and the uniform coefficient is >0.8
The light source color temperature is > 6500K
Maximum power consumption (VA): 38-150
Appearance parameter:
Type Appearance Dimensions
Length x width x thickness
Viewing screen Dimensions The fixed hole distance EXW price
Single film HC-1 416 x 509 x 22 mm 365 x 422 mm 390 mm USD200

USD280

USD360

USD440
Double film HC-2 772 x 509 x 22 mm 712 x 422 mm 746 mm
Three film HC-3 1128 x 509 x 22 mm 1068 x 422 mm 1102 mm
Four film
HC-4
1484 x 509 x 22 mm 1424 x 422 mm 1458 mm

Service life 100000hours
Connect the power supply 1 second to light up, and achieve the rated brightness
Working noise <40dB (background noise 20dB)
8 hours after continuous operation, the surface temperature of the shell <60 degree
