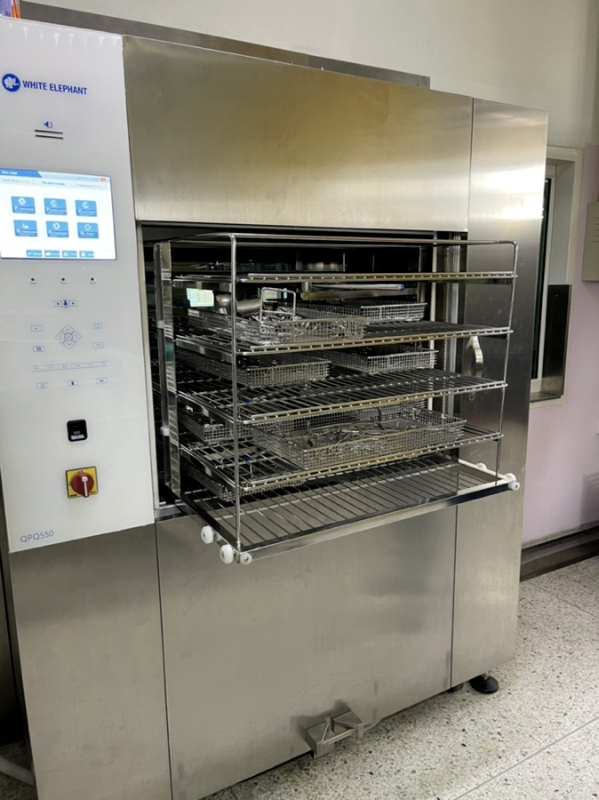

| QPQ550 Parameter |
| No |
Index |
Parameter |
| 1 |
Application range |
The product is suitable for cleaning, disinfecting and drying surgical instruments, breathing tubes, dental instruments, feeding bottles, humidifying bottles, glassware, etc. |
| 2 |
Effective volume |
≥550L |
| 3 |
Construction material |
The cleaning pipeline adopts sanitary 316 stainless steel pipeline, the inner tank of the cleaning machine adopts 304 stainless steel, the outer cover and accessories adopt 304 stainless steel, and the thickness is 1.5mm |
| 4 |
Chamber warm |
12mm Rubber sponge |
| 5 |
Fast and flexible insert card connection technology |
The water injection port of the cleaning trolley is located on the side of the cleaning chamber. There are ≥3 water injection ports. The cleaning trolley and the spray arm can be quickly and seamlessly connected to ensure the cleaning water pressure and effect. |
| 6 |
Door opening |
Automatic lower door opening, front and rear double doors, double door interlocking, double-layer hollow coating explosion-proof tempered glass door, thickness ≥50mm, sound insulation and heat insulation |
| 7 |
Door safety |
When the door is closed, it will return automatically, and the door will be opened/closed to give voice prompts to inform the door action status |
| 8 |
Water tank |
Double water tank design can achieve fast preheating |
| 9 |
Dry system |
≥3×1500W dry system，Noise≤65dB |
| 10 |
Air filter system |
The filtering accuracy is ≤0.3 um, and the filtering grade can reach H13 (99.99%) |
| 11 |
Control system |
Android control system |
| 12 |
Communication |
The device can be connected to the Internet or PC through various methods of Ethernet, wifi, 3G, USB |
| 13 |
Display |
Dual screens, each with a 10.4-inch LCD display at the front and rear, which can dynamically display the operating status and parameters of the equipment; fault alarm; touch-control operation; 800*600, 2000K true color display |
| 14 |
Safety protection |
Door motor: When the equipment motor is overloaded, the overcurrent protection switch will act and the motor will stop working;
Circulating fan: When the air pressure is too low and the air heating tube is dry, the system will automatically cut off the heating power;
Circulating water pump: When the circulating water pump is faulty, it will automatically detect and exit the program;
Enzyme liquid volume, lubricant volume: prompt when consumables are insufficient, and exit the program;
Heater: When the water level is low and the heating tube is dry, the system will automatically cut off the heating power;
Door anti-pinch device: When the door encounters obstacles in the closing process, it will stop closing and move in the opposite direction;
Over-temperature protection: dual temperature control detection, the system automatically cuts off the heating power when the set temperature is exceeded |
| 15 |
Record |
Can be connected with information management system and traceability system, automatically print process time, temperature and other parameters, and automatically record AO value |
| 16 |
Program |
≤6 sets of preset programs, each set of users can edit the program according to their needs |
| 17 |
Temperature Control System |
With independent pre-sterilization cabin water temperature controller, pre-cleaning cabin water temperature controller, cleaning cabin temperature control and air inlet and outlet temperature control systems |
| 18 |
Chemical disinfection and rust removal function |
This machine is equipped with a separate chemical disinfection program, and reserves chemical disinfection and rust removal function modules, which can be equipped with chemical disinfection and rust removal functions according to customer needs. Provide a third-party chemical disinfection test report. |
| 19 |
Cleaning effect detection |
The equipment has passed the inspection of the cleaning effect of breathing tubes, oral handpieces, glass test tubes, ordinary instruments, humidification bottles, and baby bottles by the Chinese Center for Disease Control and Prevention. And provide baby bottles, humidification bottles related test reports. |
| 20 |
Disinfection effect detection |
The equipment has passed the testing of three disinfection modes by the Chinese Center for Disease Control and Prevention, namely low temperature disinfection, high temperature disinfection, and chemical disinfection, and the test results are qualified. And provide test reports of three disinfection methods. |
| 21 |
Identification technology |
Users enter the operating system through their own physiological characteristics, and the physiological characteristics are unique. Provide third-party certification documents |
| 22 |
Intercom |
It has a voice intercom system, which realizes the function of real-time intercom between the staff in different working areas, and solves the problem of communication difficulties in the compartment for the supply room personnel to improve the work efficiency. |
| 23 |
Training function |
In addition to teaching in the form of on-site training of personnel, CD-ROMs, etc., the equipment itself can play various sensory control knowledge, operating instructions, and other teaching content required by the department. Provide color pages with official seal certification documents. |
| 24 |
Log export |
After the equipment operation data is exported, it is automatically generated as an Excel file format |
| 25 |
Property right protection |
The equipment software has Chinese computer software copyright and is protected by national intellectual property rights. Provide a copyright certificate with the words washer-disinfector |
| 26 |
Loading |
5 layers, a total of 15 standard equipment baskets (480*250*50) |
| 27 |
operation hours |
≤30min |
| 28 |
Water Consumption |
≤35L/cycle |
| 29 |
Machine dimension |
≤1340mm（L）*1025mm（W）*1880mm（H） |
